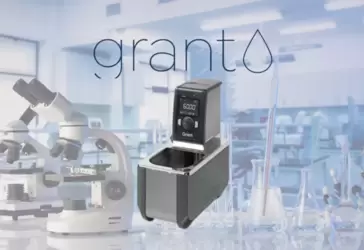

Optima TX150 Heated Circulating Bath

```html

The TX150 series of advanced digital thermostats offers excellent temperature stability and temperature control for demanding applications in the range of -15°C to 150°C. The TX150 heating circulator can be used in conjunction with any Grant stainless steel or plastic tank or with a T-CLAMP for standalone use of virtually any vertical tank.

• Cooling/heating range from -15°C to 150°C
• Stability ±0.01ºC / Uniformity ±0.05ºC
• Tank options from 5L to 38L
• Powerful integral pump for external fluid circulation
• Large, bright color display with a choice of 5 languages
• Low liquid detection (float switch)
• 5-point user calibration
• Easy to program via interface or remotely via PC/Laptop with Labwise® software

Applications

• University research: temperature control of external equipment such as electrophoresis tanks or jacketed vessels
• Industrial laboratories – Temperature probe calibration

Specifications

Dimensions (HxDxW)	342 x 172 x 141 mm
Stability (DIN 12876) 70ºC	±0.01ºC
Uniformity (DIN 12876) 70ºC	±0.05ºC
Resolution setting	0.1ºC
Display	Color TFT QVGA
Timer function	1 minute to 99 hours 59 minutes
Number of temperature presets	3
Recalibration points	5
External probe socket (TXPEP, TXSEP)	•
Communication interface	USB, RS232
Programmable	Remote control via PC/laptop 1 program/30
Relay	1
Safety: overtemperature	Adjustable cut-off
Fluid level: float	•
Language options	EN, FR, DE, IT, ES
Alarms (can be configured to switch a relay)	High and low
Heater power – 230V	1840W
Heater power – 120V	1445W
Power supply – 230V	2000 (50-60Hz)
Power supply – 120V	1500 (50-60Hz)
Height above tank rim	200 mm
Depth below tank rim	145 mm
Maximum pressure (water)	310 mbar
Maximum flow rate (water) 310 mbar	18 l/min
Pump connector	Suitable for pipes with 9 mm internal diameter
Pump connector	Suitable for pipes with 15 mm internal diameter
Weight	2.6 kg

```
