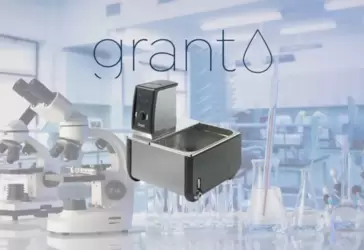

Optima T100 Heated Circulation Bath General Purpose Heating Circulation Baths
The Grant T100 series of general-purpose heating recirculating baths offers precise temperature control for simple applications in the range of 0°C to 100°C. The T100 heating circulator can be used in combination with any Grant stainless steel or plastic tank or with a T-CLAMP for stand-alone use with virtually any vertical tank.
- Cooling/heating range from 0°C to 100°C
- Stability ±0.05°C / Uniformity ±0.1°C
- Tank options from 5L to 38L
- 3 programmable temperature presets
- Low liquid protection and fixed over-temperature protection
- Visual alarm: alerts you when your attention is required
- Clear and bright 4-digit LED display
Applications
- Clinical, microbiological, and pathological laboratories: sample tempering, thawing, and incubation
- Teaching laboratories, higher education/universities – practical demonstration/experimentation, sample preparation
Specifications
| Dimensions (hxdxw) | 333 x 172 x 120 mm |
| Stability (DIN 12876) 70°C | 0.05±°C |
| Uniformity (DIN 12876) 70°C | 0.1±°C |
| Setting resolution | 0.1°C |
| Display | 4-digit LED |
| Timer function | – |
| No. of temperature presets | 3 |
| Recalibration points | 2 |
| External probe socket (TXPEP, TXSEP) | – |
| Communication interface | – |
| Programmable | – |
| Relay | – |
| Safety: over-temperature | Fixed |
| Fluid level: float | • |
| Language options | – |
| Alarms (can be configured to switch a relay) | – |
| Heater power – 230V | 1290 W |
| Heater power – 120V | 1440 W |
| Power supply – 230V | 1400 (50-60Hz) |
| Power supply – 120V | 1500 (50-60Hz) |
| Height above tank rim | 200 mm |
| Depth below tank rim | 135 mm |
| Maximum pressure (water) | – |
| Maximum flow rate (water) | – |
| Pump fitting 6 mm bore | – |
| Pump fitting 9 mm bore | – |
| Weight | 2.1 kg |
