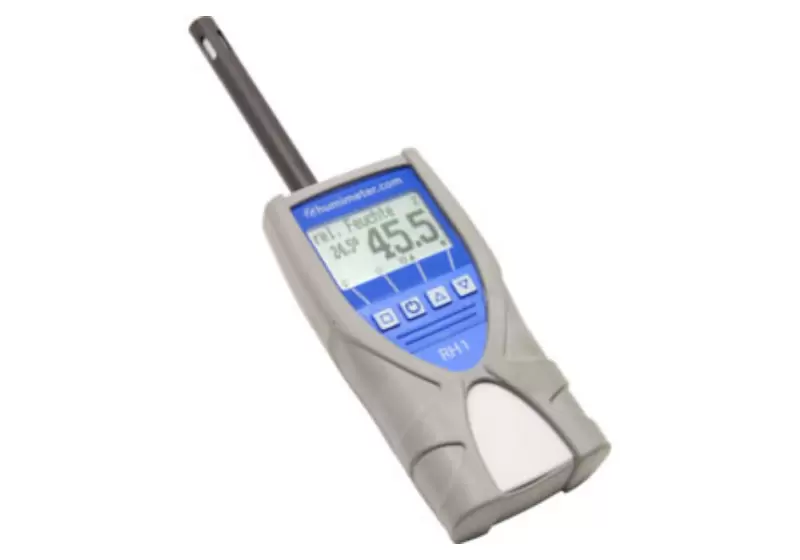

Humimeter RH1 air humidity meter

Humimeter RH1 air humidity meter

The RH1 air humidity meter is an easy-to-use device for the rapid determination of relative and absolute air humidity as well as the dew point temperature of the surrounding air. In addition, by holding the device on wood or paper, the equilibrium moisture content (EMC) and water content in the material can be determined. At the same time, the current temperature is displayed for each measurement, optionally in °C or °F. The measuring range of the RH1 hygrometer is from 0 to 100% relative humidity with a resolution of 0.1%. The calibrated measuring range, in which the measurement is within the defined tolerance limits, is from 10% to 90% relative humidity, where the accuracy of ±1.5% relative humidity (at 25°C) is achieved. The temperature measuring range is from -10 to +60 °C or from 14 to 140 °F, with a resolution of 0.1 °C. The accuracy is ± 0.4 °C. It is also possible to manually save the current readings or save them automatically at defined intervals. The device can record up to 10,000 readings, which can be provided with additional information such as the measurement location, batch number or supplier data. On request the device is also available with a USB interface for connection to a PC. Using this interface with the supplied USB cable and the included PC software you can transfer the stored values to your PC, where you can edit, analyse and store the data. If you opt for the RH1 with interface, you can print the stored measurements directly from the device on the available separate printer without having to transfer data to your PC.

humimeter RH1 air humidity meter

The RH1 air humidity meter is an easy-to-use device for the rapid determination of relative and absolute air humidity as well as dew point temperature of the surrounding air. In addition, by holding the device on wood or paper, the equilibrium moisture content (EMC) and the water content in the material can be determined. At the same time, the current temperature is displayed for each measurement, optionally in °C or °F. The measuring range of the RH1 hygrometer is from 0 to 100% relative humidity with a resolution of 0.1%. The calibrated measuring range, in which the measurement falls within the defined tolerance limits, is from 10% to 90% relative humidity, where an accuracy of ±1.5% relative humidity (at 25°C) is achieved. The temperature measuring range is -10 to +60 °C or 14 to 140 °F, with a resolution of 0.1 °C. The accuracy is ± 0.4 °C. It is also possible to save the current readings manually or save them automatically at defined intervals. The device can record up to 10,000 readings, which can be provided with additional information such as measurement location, batch number or supplier data. On request, the device is also available with a USB interface for connection to a PC. Using this interface with the supplied USB cable and the included PC software, you can transfer the stored values to your PC, where you can edit, analyze and store the data. If you opt for the RH1 with interface, you can print the stored measurements directly from the device to the available separate printer without having to transfer the data to your PC.

Download

A new revolutionary series of handheld moisture measuring devices equipped with innovative sensor technology.

With protective rubber casing and batteries.

Optional: humimeter USB data interface module with software for recording and analyzing measurement data on the USB stick, including USB cable for PC, printer, wooden case.

Thermal calibration (temperature) is achieved by raising (or lowering) the temperature sensor to a known controlled temperature and measuring the corresponding change in the associated electrical parameter (voltage or resistance).

The parameters are accurately measured against those of a certified reference probe; the absolute difference represents the calibration error. If the sensor is connected to a measuring instrument, the sensor and instrument combination can be effectively calibrated with this technique.

Features:

  • Relative air humidity from 0 to 100%, resolution 0.1%
  • Calibration from 10 to 90% +/- 1.5% (at a temperature of 25°C)
  • Temperature is interchangeable from °C to °F as desired
  • Temperature from -10 to +60°C, resolution 0.1°C
  • Calibration +/- 0.3°C (at a temperature of 25°C)
  • Dew point from -55 to +60°C, resolution 0.1°C
  • Absolute air humidity from 0 to 130 g/m³, resolution 0.1 g/m³
  • Equilibrium wood moisture from 2 to 30%, resolution 0.1%
  • Calibration from 5 to 15%, accuracy +/- 0.5% (at a temperature of 25°C)
  • Hold function, manual memory of measured values
  • Automatic data logger for 10,000 values with measurement location description
  • Supplier memory function
  • Standard equipment: humimeter RH1, protective rubber casing, and batteries
  • Optional: humimeter USB data interface module with software for recording and analyzing measurement data on the USB stick, including USB cable for PC, printer, wooden case

Your advantages:

  • Very fast adjustment
  • Long-term stability of humidity and temperature sensors
  • Simple storage of measured values
  • Optimal quality documentation
  • Menu in Italian, English, German, French, Spanish, and Russian, others on request.

Richiesta Informazioni

Prodotti correlati

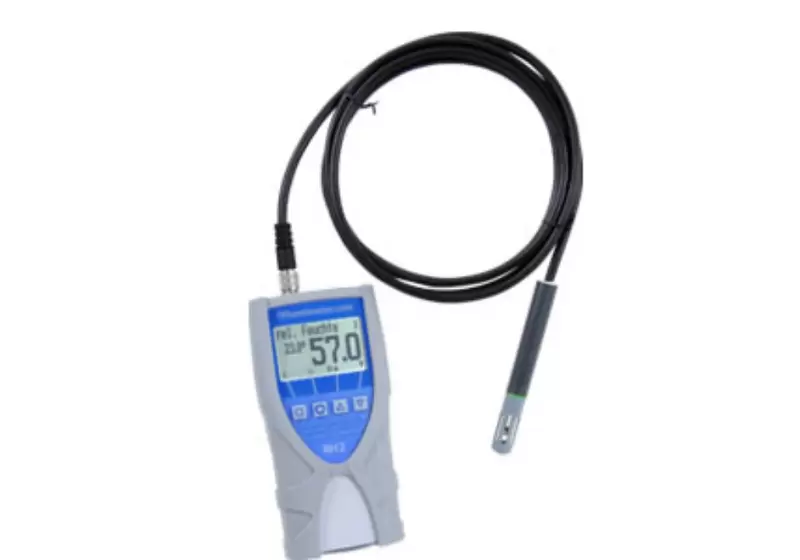

Humimeter RH2 precision humidity analyzer with data logger

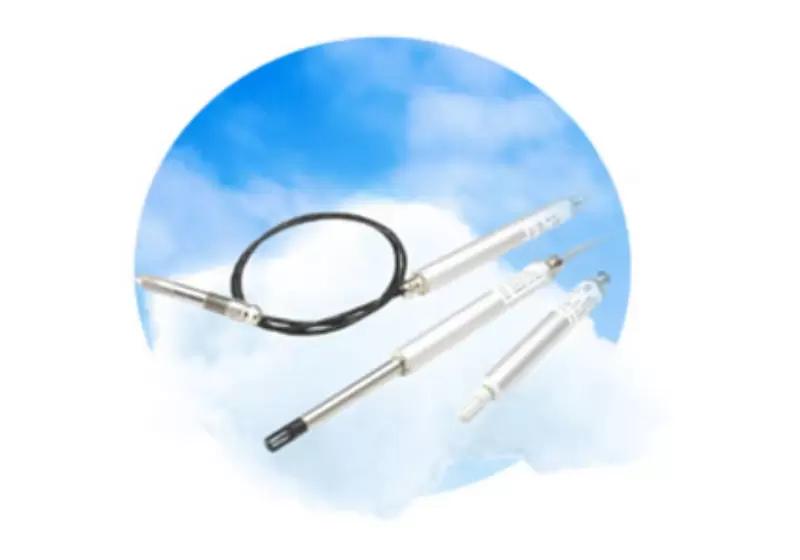

LF-TD Humidity Transmitter
