Thermal Barriers

Thermal Barriers

Thermal barriers for high temperature protection

Our range of thermal barriers is an integral part of our temperature recording systems and allows you to protect the electronic parts of the recorder, both at the high and low temperatures that occur in the food industry processes. The information below helps you choose the right barrier for the different processes. Our thermal barriers cover a very wide range of temperatures; our special water- or wax-cooled models also find applications in the steel processing sector up to 1300°C. Depending on the applications and the different thermal profiles, the barriers vary in size and weight. Our technical service is at your disposal to provide support for the correct sizing of the barrier based on your real needs.

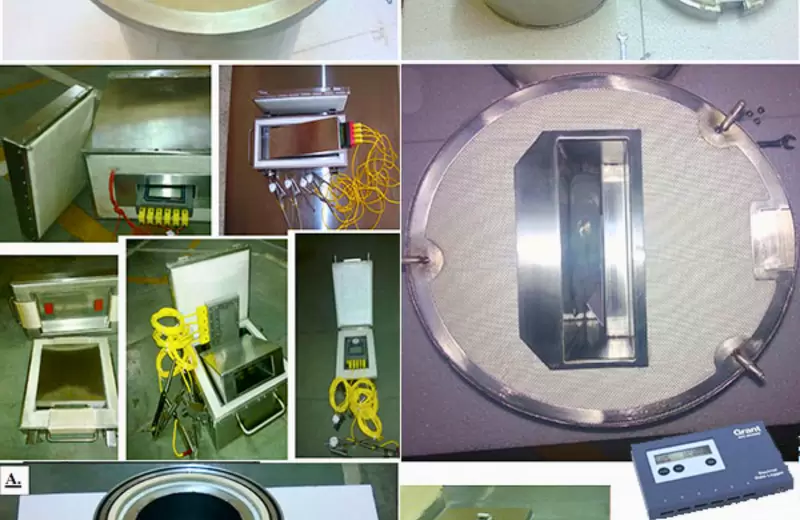

Standard barriers

Our range of thermal barriers is made up of standard barriers, usually ready in our warehouses, which can satisfy most of the needs on processes with temperatures up to 400°C

DIMENSIONS

Instrument: 140mm x 126mm x 17mm
Protective cases:
TB2020mm X 175mm X 175mm
TB2024mm X 175mm X 175mm
TB4040mm X 180mm X 220mm
TB6060mm x 210mm x 250mm
TB8080mm x 220mm x 260mm
TB120120mm x 260mm x 300mm

Special barriers

Our range of thermal barriers extends with special execution barriers. These barriers, through the use of special materials such as ceramic, Kevlar, special steels, and through water or wax cooling, can be used in a wide range of heat treatment processes such as metal treatment furnaces, whose temperatures can reach up to 1300°C. The sizing of these barriers is specific and changes from time to time based on individual processes, therefore, barrier engineering by Digitron technicians is necessary. Other special barriers are built for pressure processes, such as Autoclaves, and for all processes where, in addition to temperatures, pressures also play a fundamental role.
