Ubibot WS4

Ubibot WS4

The UbiBot WS4 is an industrial-grade environmental data logger designed for continuous monitoring in complex environments. Available in various configurations to suit your specific needs:

WiFi Models (2.4/5GHz)

  • WS4-A: Temp / Humidity / Light.

  • WS4-A1RS: Temp / Humidity / Light / Vibration + RS485 probe support.

  • WS4-A1RS1C: Temp / Humidity / Light / Vibration / CO2 + RS485 probe support.

4G LTE Models (No WiFi)

  • WS4-A4G: Temp / Humidity / Light.

  • WS4-A4G1RS: Temp / Humidity / Light / Vibration + RS485 probe support.

  • WS4-A4G1RSC: Temp / Humidity / Light / Vibration / CO2 + RS485 probe support.

4G Models + GPS Tracking

  • WS4-P4G1RS: Temp / Humidity / Light / Vibration + GPS + RS485 probe support.

  • WS4-P4G1RSC: Temp / Humidity / Light / Vibration / CO2 + GPS + RS485 probe support.

  • Dimensions: 70 x 125 x 25 mm.

  • Material: Flame-retardant ABS.

  • Display: 57 x 23 mm LCD screen.

  • Power: Built-in 2500 mAh lithium battery; rechargeable via USB Type-C (5V/2A).

  • Internal Memory: Stores up to 300,000 offline records, auto-synced upon reconnection.

  • Protection Rating: IP65 certified (dust-tight and resistant to low-pressure water jets).

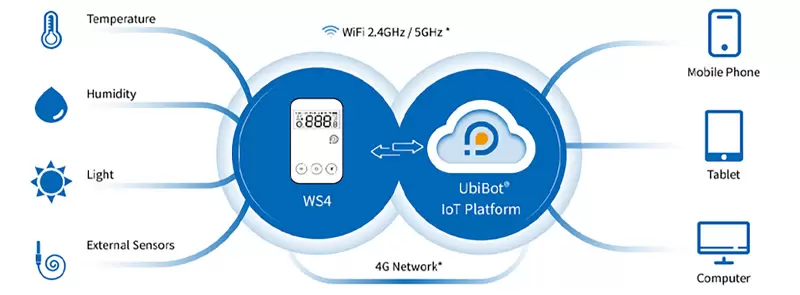

  • Wireless Network: Supports Dual-Band WiFi (2.4/5GHz) and 4G LTE (FDD & TDD) on cellular models.

  • GNSS: Satellite positioning available on select models (e.g., WS4-P4G).

  • External Ports: RS485 interface via Type-C connector for external probes (Soil Temp, Wind Speed, PT100, etc.).

  • Flight Mode: Disables radio transmissions while maintaining local logging—ideal for air transport.
