3.5" Touch-screen Terminal

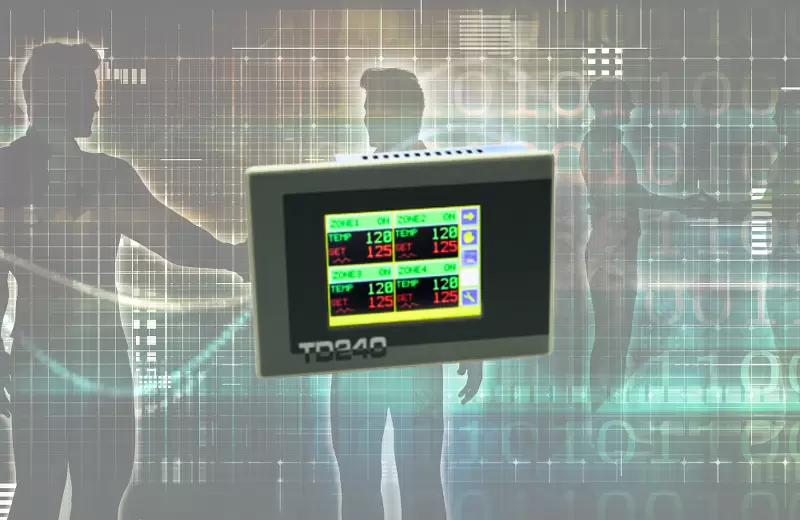

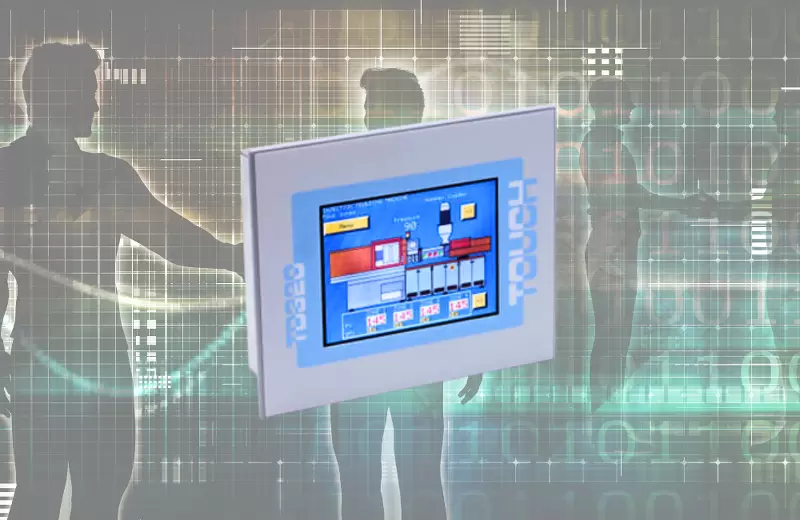

Operator terminal with integrated soft-PLC TD 240

Operator terminal with integrated soft-PLC, allows the creation of control panels with reduced dimensions and simplified wiring. Two variants are available. The base model Terminal + soft-PLC requires the use of external MCM260 modules or other Modbus devices (regulators - actuators - sensors) connected via RS485 or RS232 for wiring inputs and outputs. A compact version, on the other hand, also provides on-board digital and analog resources, integrating Terminal and PLC into a single device.In the version with integrated PLC, hardware functions are implemented for managing up to 3 Encoders (push-pull / LineDriver) A + B with zero mark for counting (x1 x2 x4 mode) revolutions, distances, volumes, flow etc... The counter can be initialized with a user-defined value both on Software event and on Hardware event (zero mark). A Software Enable is used for activating and deactivating each counter.With the free development tools PLprog and TDdesigner it is possible to create the Ladder program for the logic and the presentation and control graphics of the system. Memory cards for firmware and application download are available for programming and on-site updates.

Order codes for the operator terminal with integrated PLC TD240-AD: Modbus Master/SlaveTD240-11AD: HMi 3.5" with soft-PLC + 16 Digital Inputs/Outputs + 4 Universal Analog Inputs + 4 Analog Outputs 0...10Volt + 2 RS232/RS485 serial portsGeneral features of the operator terminal with integrated PLCContainer: 140x100 (front) x 40 mm (-AD) or 65mm (-11AD)Power supply: 12...24Vac/Vdc ±15% 50/60 HzConsumption: 8WDisplay: 3.5" TFT LCD Display - 256 Colors, integrated Touch-screenEnvironmental conditions: Temperature 0-45 °C, humidity 35..95 uR%Material: Front: aluminum with polycarbonate cover; Container: chrome-plated steelWeight: Approx. 690gr -AD version, approx. 750gr -11AD versionProtection: IP54 (Front), IP20 (Container and Terminal blocks)Fast configuration: Memory Card SLOT (MMC) for graphics + ladder uploadExpansions: MCM260-1/2/3/4/5 modules or other Modbus devicesInputs of the operator terminal with integrated PLCAnalog: 4 Selectable for TC, K, J, S, R, T, E, PT100, PT1000, PT500, Ni100, NTC10K, (B 3435K), PTC1K (kty1000) 0/4..20 mA, 0/1..10 V (TD240-11AD version)Digital: 16 Selectable as inputs/outputs (TD240-11AD version)Encoders: Overlaid / Configurable on PLC digital inputs (TD240-11AD version)Fast input performance: 3 x 80 KHz (x1 - x2 - x4 counting mode) - 0...16777215 (24 Bit)OutputsDigital: 16 Selectable as 700mA static outputs or digital inputs (TD240-11AD version)Analog: 4 outputs 0...10Volt (TD240-11AD version)Serial ports: 2 Communication ports with RS232/RS485 interfaceSoftware featuresLogic programming: PLprog Software, Ladder diagrams; 10Kword VW variables, 800 markers (logic relays), 128 bistables, 128 16-bit timers, 64 up-down counters, mathematical and logic functions, rescale functions, bit contactGraphic interface programming: TDdesigner SoftwareCommunication protocols: Modbus RTU master/slave; Free-Port mode for Modem protocols or proprietary devicesMemory: 384Kbyte Flash for programming, 20Kbyte retained Ram (6 months), 62Kbyte EEpromClock: Real-Time clock with back-up batteryAnalog input regulation algorithms: P, PI, PID, PD
