LTC4 Refrigerated Circulation Baths

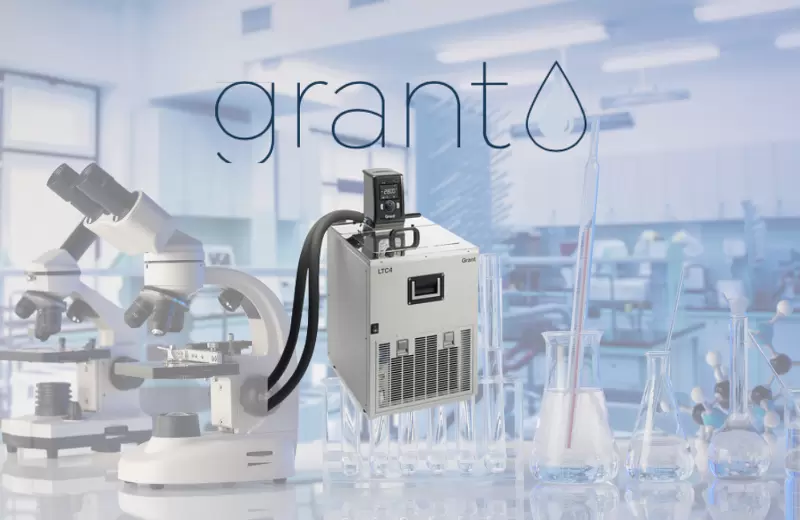

The Grant LTC4 offers exceptional performance for routine and sophisticated applications requiring precise temperature control in the range of -30 to 100°C. The LTC4 includes the TX150 heating circulator and an R4 refrigeration tank/unit, complete with insulated tubing and clips to form a ready-to-use system.

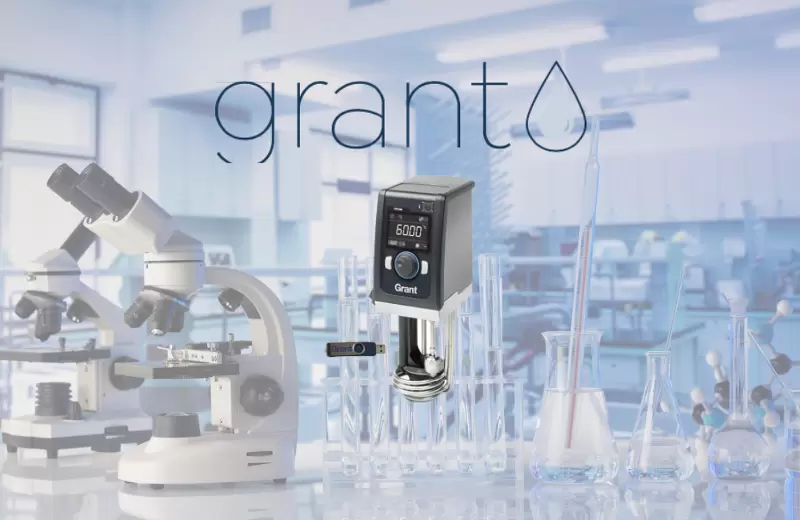

The TX150 Optima™ is a high-performance programmable digital heating circulator with an exceptionally simple user interface. This allows for quick setup of multiple parameters through a powerful menu system and provides sophisticated control for temperature-controlled applications. USB connectivity is available for a PC or laptop. It is programmable with Labwise™, a software program to set all parameters, including programs, via PC. Labwise™ also features real-time status windows, a graphical display of controller performance during program execution, and allows for data logging for future recall and analysis.

• Powerful pump for external circulation, max flow 18 L/min, max pressure 310 mbar
• Color QVGA TFT display
• Setpoint, plus three adjustable preset temperature values
• Timer function for reaction times, 99 hours, 59 minutes, with audible alarm and heater control
• Liquid selection safety function adjusts based on temperature range or heater power
• Fault indication display
• Programmable relay
• Two-point user recalibration of internal and external probes (TXPEP, TXSEP)
• Offset adjustment for optimal isothermal performance
• Can be programmed to turn refrigeration on and off during a heating and cooling program
• Memory capacity for a program up to 30 segments
• Choice of languages: English, French, German, Spanish and Italian
• Low liquid protection via float switch
• Adjustable overtemperature protection
• Convenient accessory clamp available for mounting to vessels
• Stability ± 0.1°C

Note: The refrigeration unit can be switched off independently of the circulator to allow for heating-only applications. All refrigerating bases can be used up to a maximum temperature of 100°C.

Applications

• University research/teaching - temperature control of external equipment including: spectrophotometers and refractometers
• Circulation of temperature control fluid to jacketed vessels, cooling crystallization vessels
• Industrial laboratories: temperature probe calibration, product testing, product quality control, temperature control of external equipment

Specifications
