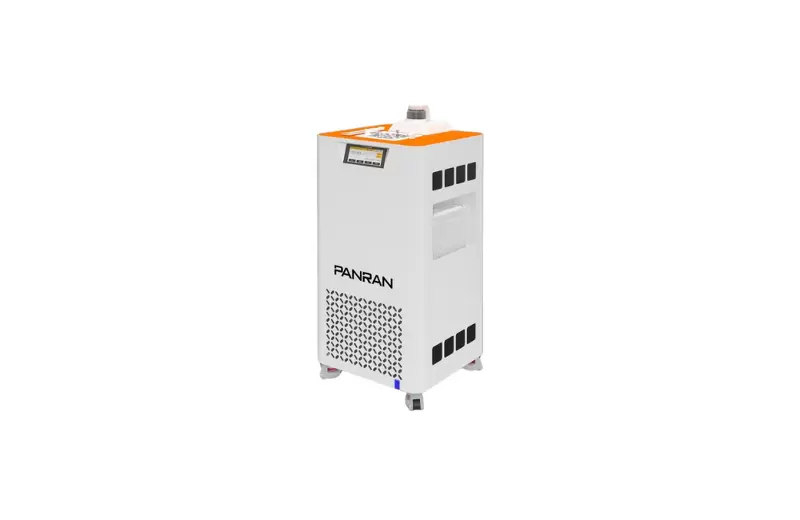

Standard thermostatic bath PR570 series

Standard thermostatic bath PR570 series

The PR570 series standard thermostat adopts the new generation PANRAN temperature control technology, with the PR2602 temperature controller as its core. Utilizing a new logic and constant temperature control algorithm, combined with a new fluid circulation structure, it offers excellent temperature measurement characteristics and a high-level intelligent operating experience. The complete series includes products in three temperature ranges, covering -40 °C to 300 °C. Compared to traditional thermostatic baths, it offers significant advantages in terms of measurement characteristics, ease of use, network connectivity, and intelligence.



The PR570 series standard thermostat adopts PANRAN's new generation of temperature control technology, with the PR2602 temperature controller as its core, utilizing a new logic and constant temperature control algorithm, combined with a new medium circulation structure, providing excellent temperature measurement characteristics and an excellent intelligent operating experience. The complete series includes products in three temperature ranges, covering -40 °C to 300 °C. Compared to traditional thermostatic baths, it offers significant advantages in terms of measurement characteristics, ease of use, network connectivity, and intelligence.


1.1 Key Features

l Smaller size, larger capacity;

l Constant speed temperature increase and decrease function (Type A);

l Excellent temperature uniformity and temperature fluctuation;

l The standard temperature control range of the constant temperature oil tank covers 50℃~300℃;

l The fourth-generation PR2602 controller achieves highly intelligent control;

l Full-screen display mode is convenient for observing real-time temperature from a certain distance;

l Supports PANRAN Smart Metering APP, which can remotely view current working conditions;

l Rich optional accessories to meet various user needs;

l Real-time monitoring of multiple parameters to improve operational safety.

Item Model

PR570B

PR571A

PR571B

PR572B

PR573A

PR573B

Constant speed heating

●

●

●

●

●

●

Constant speed cooling

(Note 5)

●



●


Cloud measurement function

○

○

○

○

○

○

RS232 communication

●

●

●

●

●

●

Temperature control

range

-80℃~100℃

-40℃~100℃

(Note 3)

-10℃~100℃

(Note 3)

(TA+20℃)~300℃

(Note 1)

Working medium

Anhydrous ethanol/fresh water

(Antifreeze)

Antifreeze



Antifreeze



Methyl silicone oil



Volume

20 liters (Note 2)

20L + 10L (oil storage tank)

Physical Dimension

(H×W×D)

1138×856×617(mm)

1150×516×516(mm)

(Note 2)

1130×516×516(mm)

1150×516×516(mm)

Weight

(Excluding Medium)

200 kg

120 kg (Note 2)

105 kg

100 kg

115 kg

100 kg

Rated Power

5.2 kW

3.6 kW

3.1 kW

2.3 kW

Working chamber dimensions

(H×W×D)

450 mm × 130 mm × 130 mm

(Maximum height in center 530 mm)

Display

6.8-inch industrial touch screen with 1280x480 pixel resolution

Working environment

Operating temperature range: (5~35)℃, non-condensing

Power supply

220 V AC ± 10%, 50 Hz

Note 1: The minimum settable temperature for PR573 is 35°C.

Note 2: Dimensions and weight do not include the PR5711 cooling component.

Note 3: PR571/PR572 models are available as customized products with an extended temperature range up to 160 °C. For operating temperatures above 100 °C, low-temperature heat transfer oil must be used as the working fluid.

Note 4: ● Standard configuration,  ○ Optional.

Note 5: The PR570B model, at ambient temperatures below 23°C, can achieve controlled cooling at (0.1~1)°C/min in the range of (ambient ~ -25)°C.

Richiesta Informazioni

Prodotti correlati

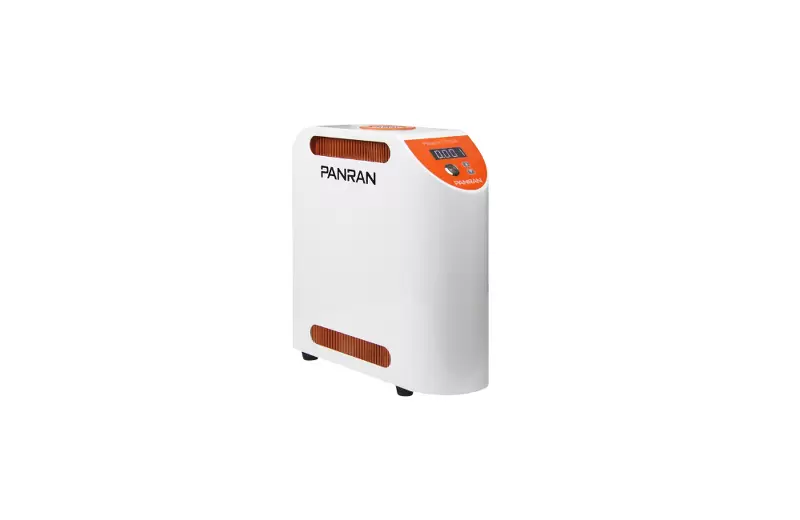

Ice Point Thermostatic Bath PR540
