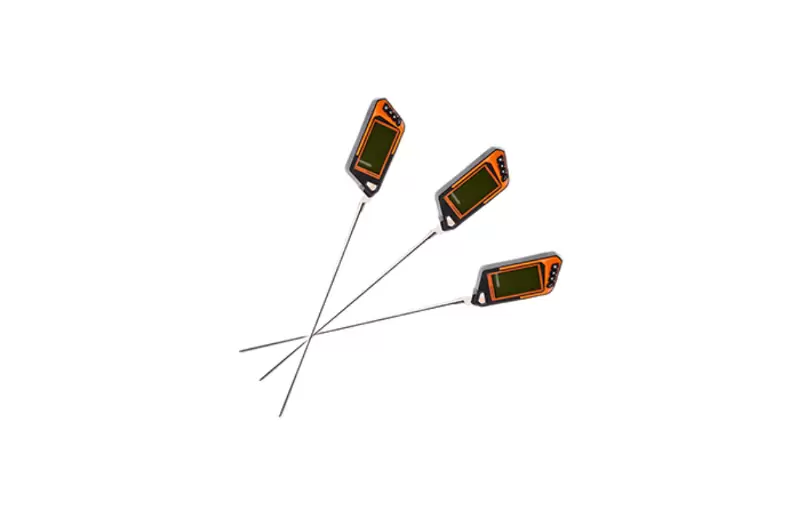

PR710 Standard Thermometer
The PR710 series, characterized by high precision and stability, is a portable precision instrument for temperature measurement, specifically designed for temperature measurement. The measuring range is between -60 °C and 300 °C. The thermometer can be equipped with advanced functions. The PR710 series is compact, portable, and ideal for laboratories and operational sites.
The PR710 series, characterized by high precision and stability, is a portable precision instrument for temperature measurement, specifically designed for temperature measurement. The measuring range is between -60 °C and 300 °C. The thermometer can be equipped with advanced functions. The PR710 series is compact, portable, and ideal for laboratories and operational sites.
Features
Excellent accuracy index, annual variation better than 0.01 °C
Thanks to self-calibration via internal standard resistance, the PR710 series offers excellent long-term stability with a temperature coefficient of only 1 ppm/℃. When operating above a heat source, the effect of the heat source's temperature on its temperature indication is minimal.
Resolution 0.001 °C
The PR710 series integrates high-performance measurement modules into a compact and slim enclosure. Its electrical measurement performance is comparable to commonly used 7.5mm multimeters. Stable readings with a resolution of 0.001 °C can be obtained.
Traceable to other temperature standards
Using PC software or the built-in calibration function, the PR710 can be easily traced to standard temperature standards such as SPRTs. After tracing, the measured temperature value can coincide with the standard for a long period.
Screen adapts to view thanks to built-in gravity sensor.
The PR710 series has two display modes, horizontal and vertical (PATENT NO.: 201520542282.8), and can automatically convert between the two display modes, simplifying reading.
Temperature stability calculation
The PR710 series accurately calculates the temperature stability of the measured environment for 10 minutes with a sampling frequency of one data point per second. Furthermore, the simultaneous use of two PR710 series thermometers simplifies the measurement of temperature difference between two points in the environment. In combination with the temperature stability measurement function, it provides a simpler and more accurate solution for testing thermostatic baths.
Extremely low power consumption
Portable products designed by PANRAN have always been distinguished by their extremely low power consumption. The PR710 series has pushed this feature to the extreme. By disabling the wireless communication function and using only three AAA batteries, it can operate continuously for over 1400 hours.
Wireless communication function
After connecting the PR2001 wireless communication module to the computer, a 2.4G wireless network can be established with multiple PR710 series thermometers, and the measured value can be monitored in real-time. It is easier to obtain temperature indication compared to other conventional standards.
