"PR9144C Manual Hydraulic High Pressure Oil Calibration Pump"

"PR9144C Manual Hydraulic High Pressure Oil Calibration Pump"

The PR9144C high-pressure manual calibration pump for hydraulic oil abandons the traditional one-way valve structure. Pressure range: (-0.8 ~ 2800) bar.

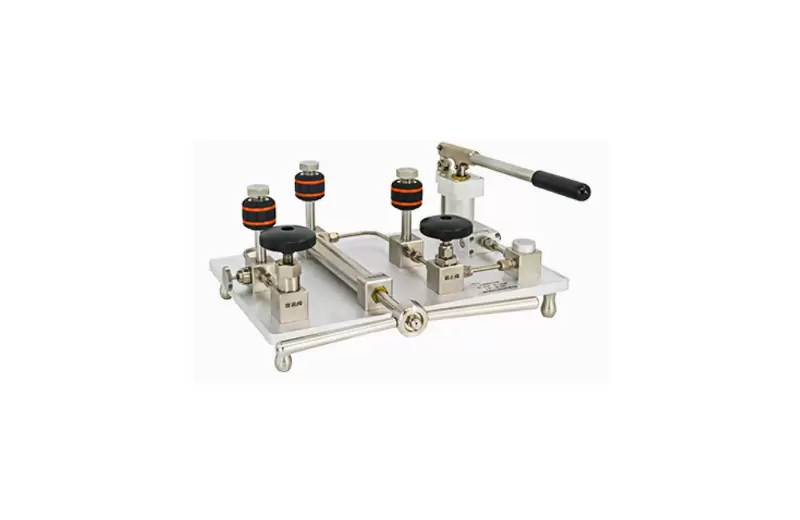

PR9144C High-Pressure Hydraulic Oil Manual Calibration Pump


This one-way valve is different from the traditional structure, so the line does not jam easily. At the same time, thanks to the use of a special seal, high compression resistance and high pressure can be achieved. This product can also produce a vacuum degree of 80 kPa, calibrating the pressure gauge.



Model

Manual Hydraulic Oil High Pressure Calibration Pump







Technical Indicators

Operating Environment

Laboratory

Pressure Generation Range

(-0. 08 ~ 280) MPa

Fine Adjustment Resolution

0.1 kPa

Working Medium

Engine Oil

Output Interface

M20*1.5 (3 pieces) optional

Dimensions

500 * 300 * 260 mm

Weight

14 kg

Richiesta Informazioni

Prodotti correlati

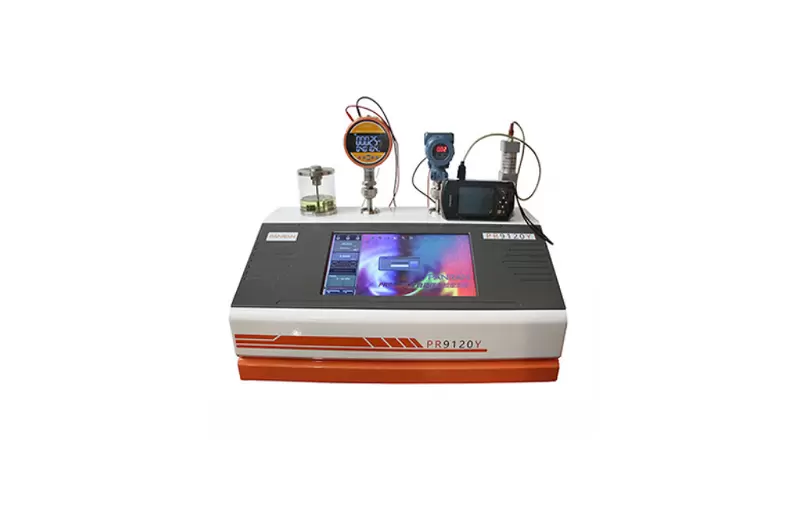

Comparatore di pressione idraulica completamente automatico PR9120Y
